Getting Started

Understanding your deliverables

A quick tour of every output DroneFlow produces and when you'd reach for each one.

A finished DroneFlow project can include the full set of survey-and-mapping deliverables. Here's the short version of what each one is for — each has its own detailed article.

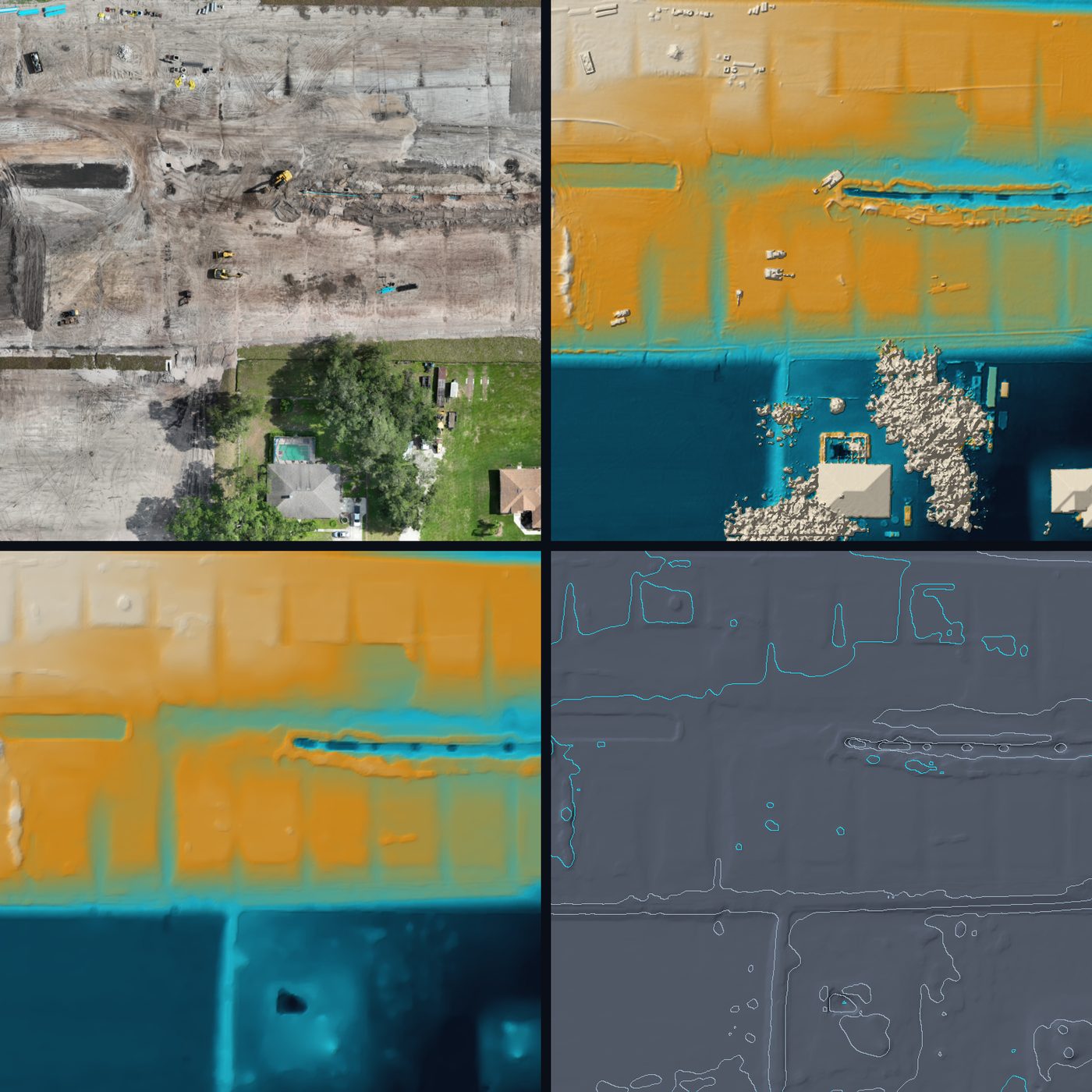

One 167-metre square of a construction site shown four ways: top left the orthomosaic photograph, top right the digital surface model where tree canopy and rooftops stand out pale above the ground, bottom left the digital elevation model where those trees and buildings are gone leaving bare earth, and bottom right contour lines over shaded relief
The same 167 × 167 m of ground, four ways. Top left orthomosaic · top right DSM · bottom left DEM · bottom right contours at 2 ft. Both elevation panels use one shared colour scale, so the trees and rooftops that glow pale in the DSM and vanish in the DEM are a real difference in the data, not a change of palette.
  • Orthomosaic — a single, georeferenced, distortion-corrected top-down image of the whole site.
  • DSM & DEM — elevation grids: the surface as captured (DSM) and the bare ground (DEM).
  • Contours — elevation lines at the interval you choose, exportable to CAD.
  • 3D model & point cloud — a textured mesh you can orbit, and the dense point cloud behind it.
  • QA report — our automated check that every deliverable is complete and consistent before you rely on it.

Not every capture produces every deliverable — a 3D-only oblique flight has no orthomosaic, for example. The project only ever shows what your data actually supports.
